Features:
• 1080 Watts Continuous Power Handling
• Coherent Wavefront Single Source Design
• Works as Monitor, Side, Front-of-House or Center-fill Applications
• Full 60º x 60º Coverage from 2.5" Titanium Diaphragm Horn
• Passive/Active Switch for Full Range or Bi-amped Operation
• 5/8" (15mm) 11-ply Russian Birch Plywood Cabinet
• Two All-metal Speaker Stand Adaptors
• Heavy Gauge Perforated All-Metal Grille
• Integrated Handles
• Rugged Nylon Glides

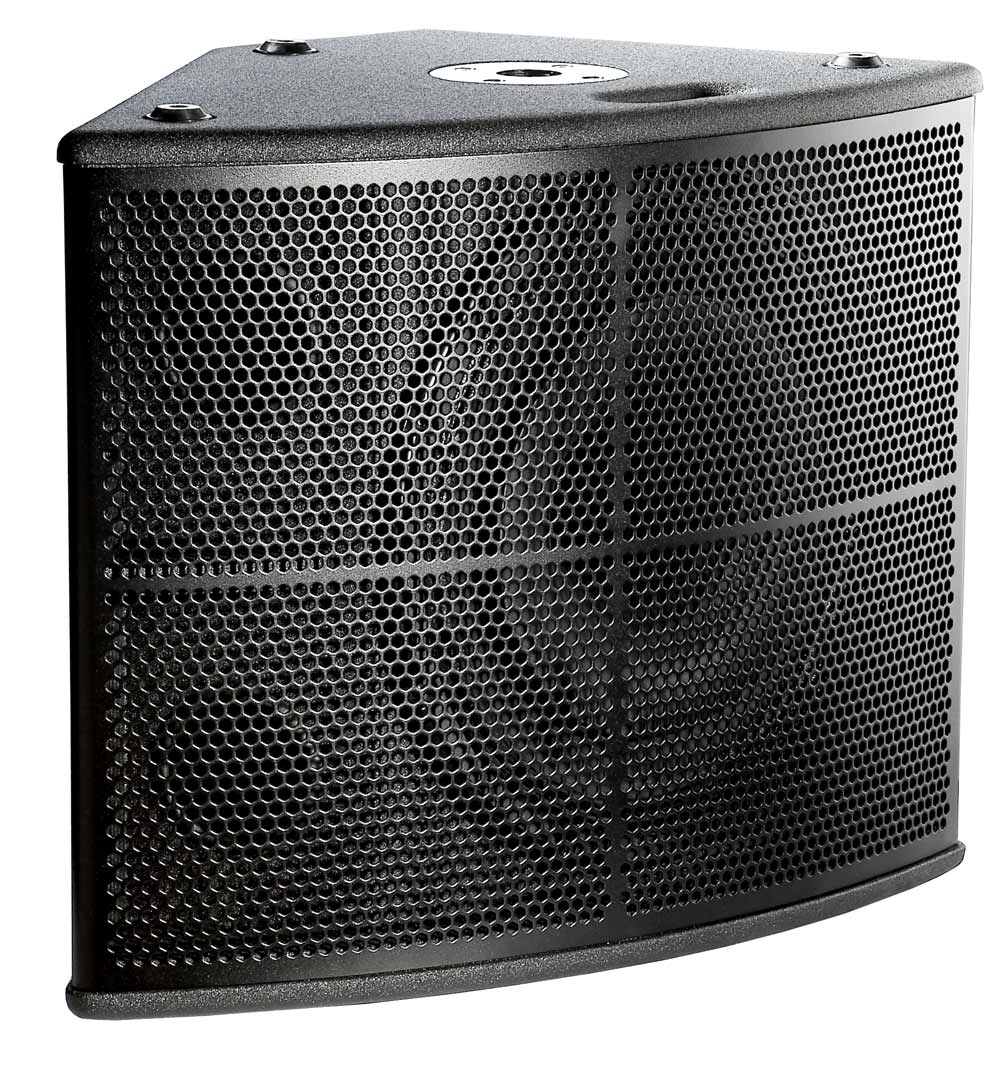

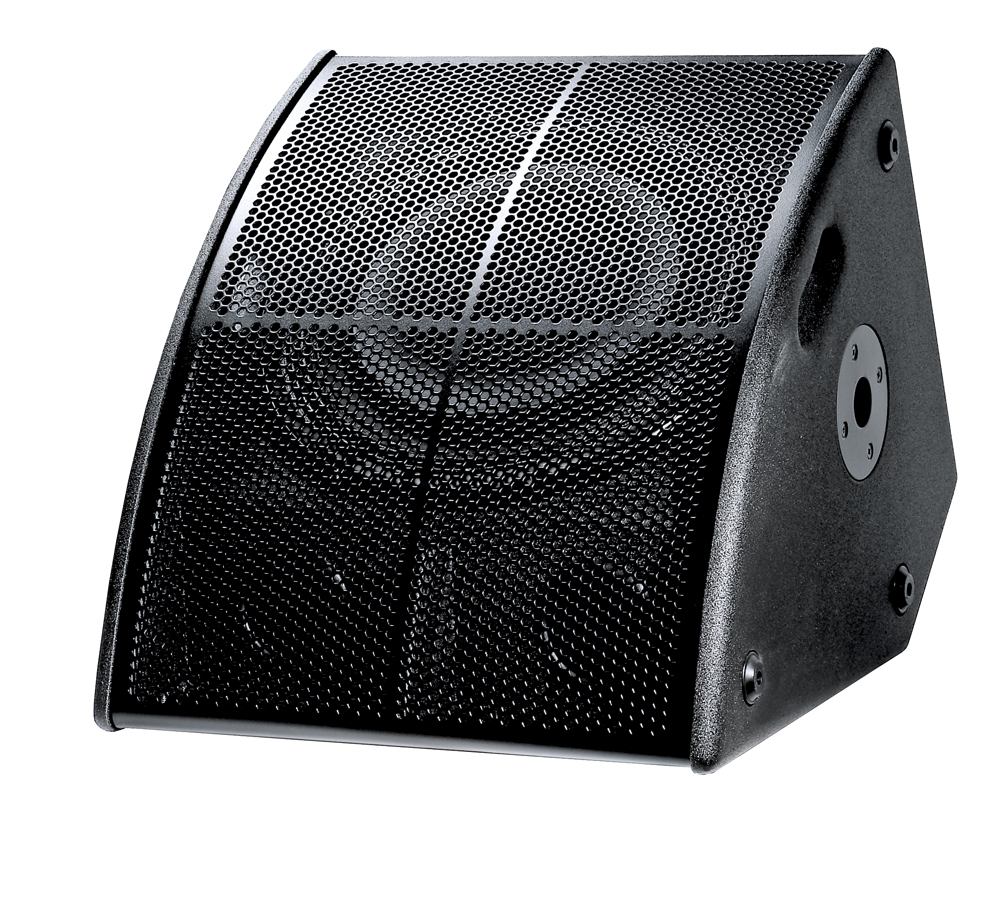

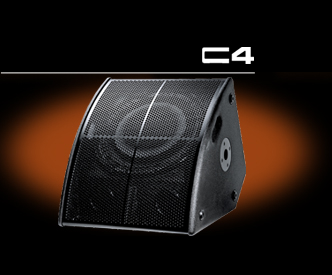

The VTC Inception Series C4 15" coax loudspeaker enclosure is one of the most versatile multi-purpose cabinets in the VTC line. Capable of delivering 1080 watts (continuous power) in an extremely compact and versatile cabinet, the Inception Series C4 will function as a low profile wedge monitor, as a compact front-of-house cabinet or as an ideal side fill / front fill loudspeaker.

The Neodymium magnet coaxial driver delivers 180 watts of high frequency program with full 60º x 60º degree coverage from the 2.5" titanium diaphragm horn assembly. The 15" Neodymium woofer component delivers an additional 900 watts of low frequency support.

An Active / Passive Bypass Switch on the input panel allows the VTC C4 enclosure to run as a full range cabinet with its internal passive crossover network, making it ideal for repeater and side fill applications where quick plug and play connection to a single amp channel is required. In Active mode, the internal crossover is bypassed allowing efficient bi-amp operation of the C4 for critical monitoring and sound reinforcement applications.

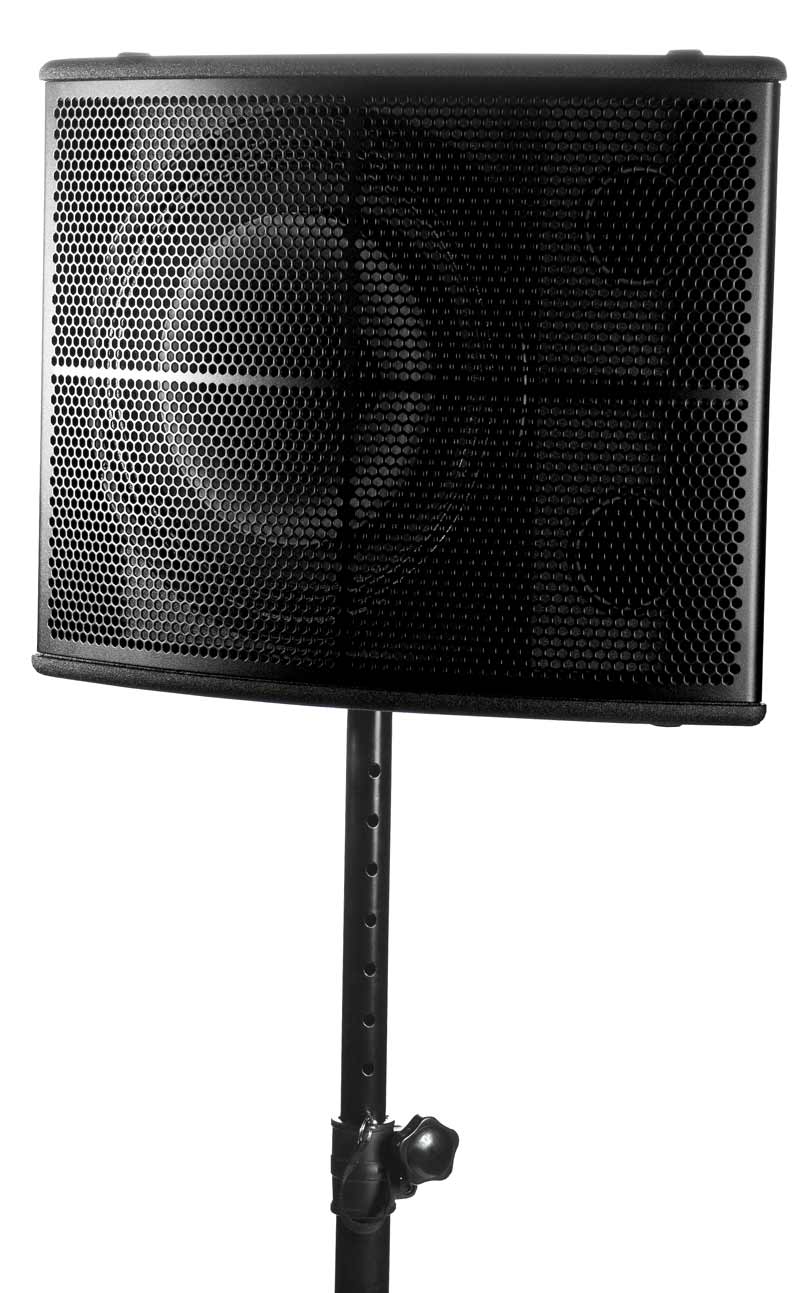

Two integrated 1 3/8" (3.5cm) pole mount adaptors allow the C4 to be oriented as required on standard heavy-duty speaker stands for side and center-fill applications where maximum SPL and coverage is required from a compact cabinet source.

Built for touring applications, the 45lb (20.5kg) VTC C4 uses a solid 5/8" (15mm) 11-ply Russian Birch plywood cabinet construction; integrated handles and a heavy-gauge perforated all metal grille to protect the speaker components.

Specifications
Driver Components (HF) 180 watt, 8 Ohm driver w/ 2.5" voice coil, Titanium Diaphragm
w/ 1.4-inch exit - Neodymium magnet assembly
Driver Components (LF) 900 watt, 8 Ohm 15" woofer
w/ 3.5" voice coil- Neodymium magnet assembly
Continuous Power HF: 180 Watts
LF: 900 Watts
Nominal Impedance HF: 8 ohms
LF: 8 ohms
Frequency Response 60Hz - 20kHz (with recommended processing)
Sensitivity (1w/1m) HF: 110dB
LF: 98dB
Calculated Max Output (average) HF: 132dB
LF: 127dB
Crossover Frequency 1150Hz
Nominal Coverage Horizontal: 60°
Vertical: 60°
Enclosure Material 5/8" 11-ply Baltic birch plywood
Finish Black Ultrathane paint
Grille Perforated, formed powder coated steel
Connectors Neutrik Speakon® NL4 in parallel (x2)
Dimensions (DWH, inches) 16.75 x 18.5 x 20.5
Dimensions (DWH, cm) 42.6 x 47 x 52.1
Weight (lbs/kg) 45 / 20.5
